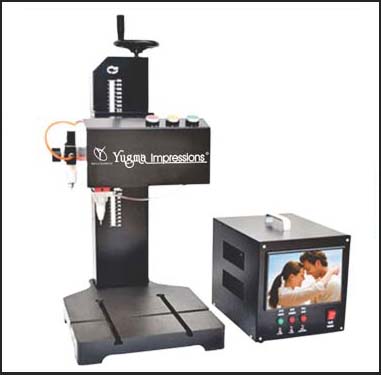

Ultra Large Touch Monitor Nameplate Steel Dot Pin Marking Machine

You are here : Home | Ultra Large Touch Monitor Nameplate Steel Dot Pin Marking Machine


Product Description

Item number BM-16S7IN
Product Name Ultra Large Touch Monitor Nameplate Steel Dot Pin Marking Machine
Cast Iron Base Durable over 10 years
Usage Metal printing machine – Stylus printer, dot pin header
Marking surface Flat surface & curved surface (height difference within 3mm)
Additional parts need Air compressor
Marking Power Air compressor (pneumatic) & electricity
Electricity AC220V±10%~50Hz   AC110V±10%~50Hz
Energy consumption 120W (air compressor excluded)
Control type Connect computer with software
Marking type Full-Automation
Marking machine type Desktop, Benchtop
Marking contents Characters, numbers, symbols, graphs, logo, two dimensional barcode
Size of characters Adjustable on marking software
Marking depth 0.02-2mm (adjustable, depending on materials)
Marking speed 3-5 letters/s according to letter size (height 2mm)
Marking materials Metal or nonmetals with hardness under HRC65
CNC or Not No (optional item with CNC)
Pneumatic pressure 0.3-0.6 Mpa
Repeat precision 0.02-0.04 mm
Dot peen header Harden HRC92 (Hardness)
Marking area 300x200mm, normal area is 150x90mm. Optional 200x150mm
Controller 7.5 Inch touch monitor, can connect with mouse and keyboard
Graphic Format Supported DWG, PLT, SLG, WMF, EMF, AI

Features:
  • Core Parts: Imported from Taiwan, Japan, USA...etc.
  •  3 Years Warranty: Main parts, not including consumable part like pin head.
  •  10 Years Durable: Cast Iron Base.
  • Best Air Valve In The World: USA MAC.
  •  Imported Luxembourg Pin Header: high tensile and durable for one whole year.
  •  Imported Taiwan Air Pressure Regulator(controller).
  •  High Precision Linear Slider HIWIN or SBC.
  • Millitary Aviation Cable:
  • Industrial Load Bearing Pole.
  • Industrial Screw Rod.
  • Convenient Control Buttons: Lamp, Air control, Print.
  • Flat Surface & Curved Surface Marking.
