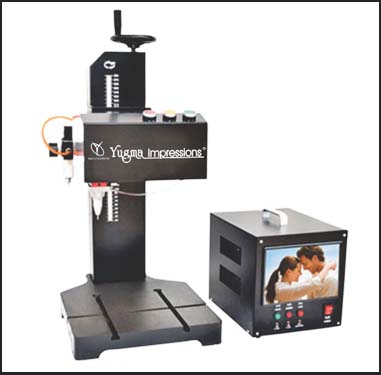

7.5 Inch Monitor Metal Engraving Machine BM-09T
Product Description
Factory Dedicated 7 Inch Touch Screen Monitor Metal Engraving Machine

Item number BM-09T
Product Name Factory Dedicated 7 Inch Touch Screen Monitor Metal Engraving Machine
Usage Metal printing machine – Stylus printer
Engraving surface Flat surface and curved surface (high difference 3mm)
Controller type 7.5 inch touch screen monitor - no need computer
Additional parts need Air compressor
Engraving Power Air compressor (pneumatic) & electricity
Electricity AC220V±10%~50Hz   AC110V±10%~50Hz
Energy consumption 120W (air compressor excluded)
Control type Connect computer with software
Engraving type Full automatic
Engraving machine type Desktop, Bench top
Engraving contents Characters, numbers, symbols, graphs, logo, two dimensional barcode
Size of characters Adjustable on marking software
Engraving depth 0.02-2 mm (adjustable, depending on materials)
Engraving speed 3-5 letters/s according to letter size (height 2mm)
Marking materials Metal or nonmetals with hardness under HRC65
Pneumatic pressure 0.3-0.6 Mpa
Repeat precision 0.02-0.04 mm
Dot peen header Harden HRC92 (Hardness)
Controller 7.5 inch touch screen monitor
Usage Metal printing machine – Stylus printer
Graphic Format Supported DWG, PLT, SLG, WMF, EMF, AI
Marking surface flat curved surface
Product description 7.5 Inch touch screen monitor, no need additional computer to control the machine. Flat curved surface metal marking machine-Stylus printer.
