Manufacturer, Exporter And Supplier of Ultra Large CNC Nameplate Steel Dot Pin Marking Machines and our setup is situated in Aurangabad (Chhatrapati Sambhajinagar), Maharashtra, India.

Product Description

Item number BM-16S

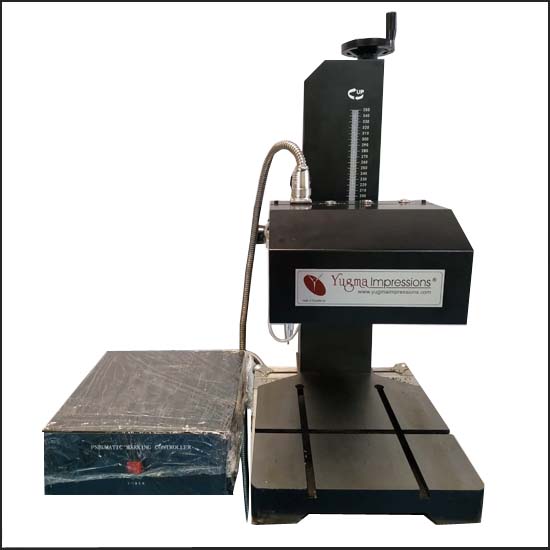

Product Name Ultra Large CNC Nameplate Steel Dot Pin Marking Machine
Usage Metal printing machine – Stylus printer
Engraving surface Flat surface and curved surface (high difference 3mm)
Controller type 7.5 inch touch screen monitor - need computer to control
Additional parts need Air compressor
Engraving Power Air compressor (pneumatic) & electricity
Electricity AC220V±10%~50Hz   AC110V±10%~50Hz
Energy consumption 120W (air compressor excluded)
Control connection Connect monitor with build-in software
Engraving type Full-Automation
Engraving machine type Desktop, benchtop
Engraving contents Characters, numbers, symbols, graphs, logo, two dimensional barcode
Size of characters Adjustable on marking software
Engraving depth 0.02-2 mm (adjustable, depending on materials)
Engraving speed 3-5 letters/s according to letter size (height 2mm)
Marking materials Metal or nonmetals with hardness under HRC65
Pneumatic pressure 0.3-0.6 Mpa
Repeat precision 0.02-0.04 mm
Dot peen header Harden HRC92 (Hardness)
Marking area 300x200mm, normal area is 150x90mm.
Graphic Format Supported DWG, PLT, SLG, WMF, EMF, AI
